Project Name: a power generation Co., Ltd. of China Huadian Group
System introduction: 4 × 300MW+2 × 600MW unit
Circulating water volume: 4 × 36660m3/h+2 × 73800m 3/ h
Water holding capacity: 4 × 18500m 3+ two × 34000m 3
Make up water source: surface water
Water quality: the water quality is mainly characterized by unstable water quality and high content of suspended solids
Service time: from May 2020 to now
System operating conditions:
Dosing scheme:
Chemical name | model | dosage(mg/l) | Dosage and dosing method |
Phosphorus free scale and corrosion inhibitor for circulating water | GL-618 | 5 | Continuous dosing |
Circulating water oxidizing bactericide | 80 | Impact dosing | |
Circulating water bactericidal stripping agent | GL-SJ004 | 100 |

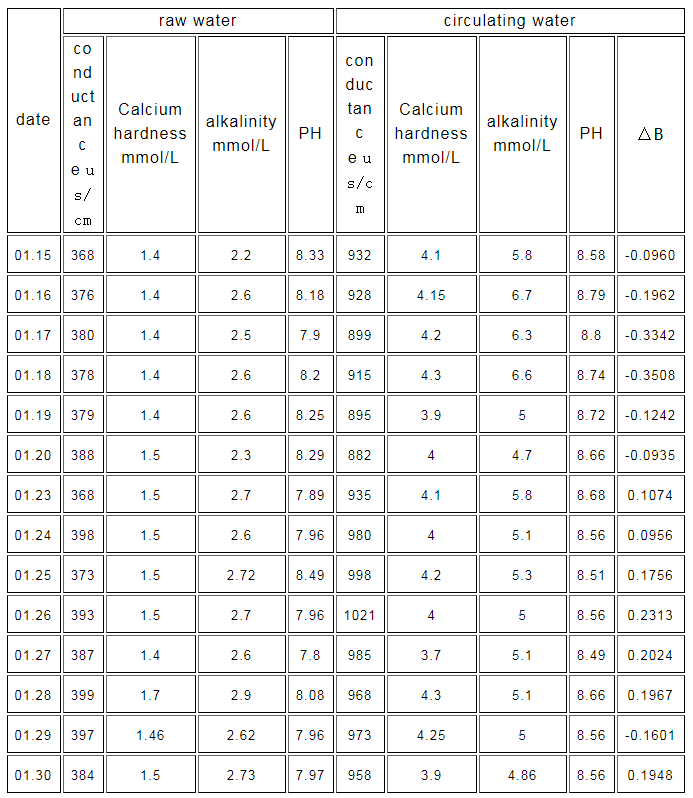

Partial operation data
Project operation effect
During system operation. With the joint efforts of both parties, during the operation guarantee period of Shandong Dadu new materials Co., Ltd., the water quality of the internal circulating water system is stable, the inner wall of the heat exchanger is free of scaling and corrosion, and the cooling tower is free of microbial breeding, which effectively reduces the risk of scaling and pollution blockage of the system and ensures the stable and normal operation of the system.
Real scene
